Mast-Boom Rigging

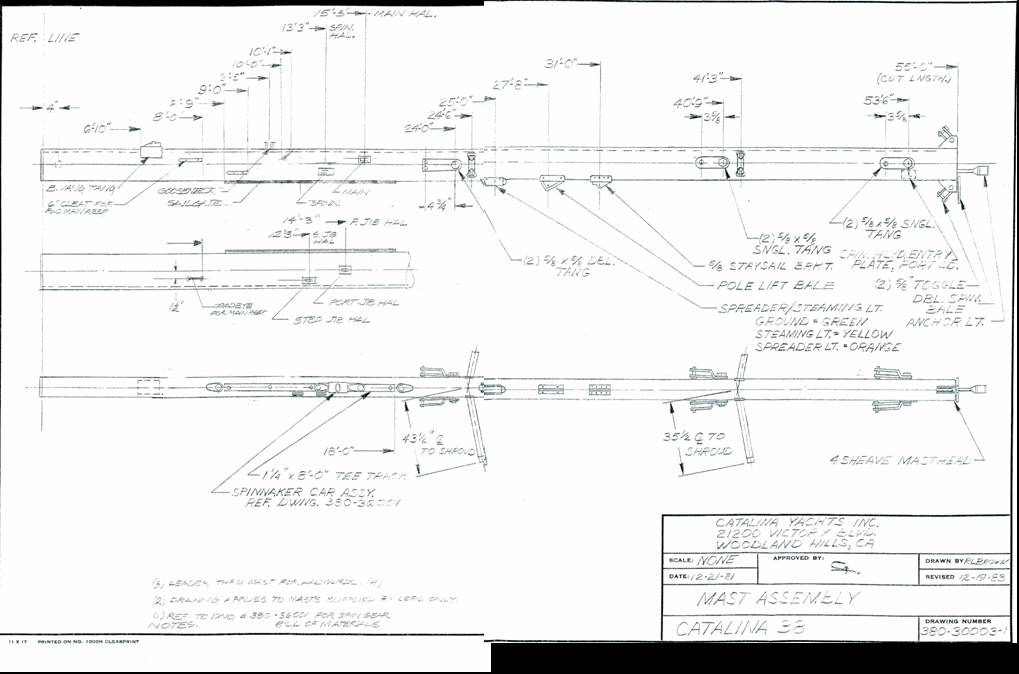

Mast Assembly 1

Mast Asemgly 2

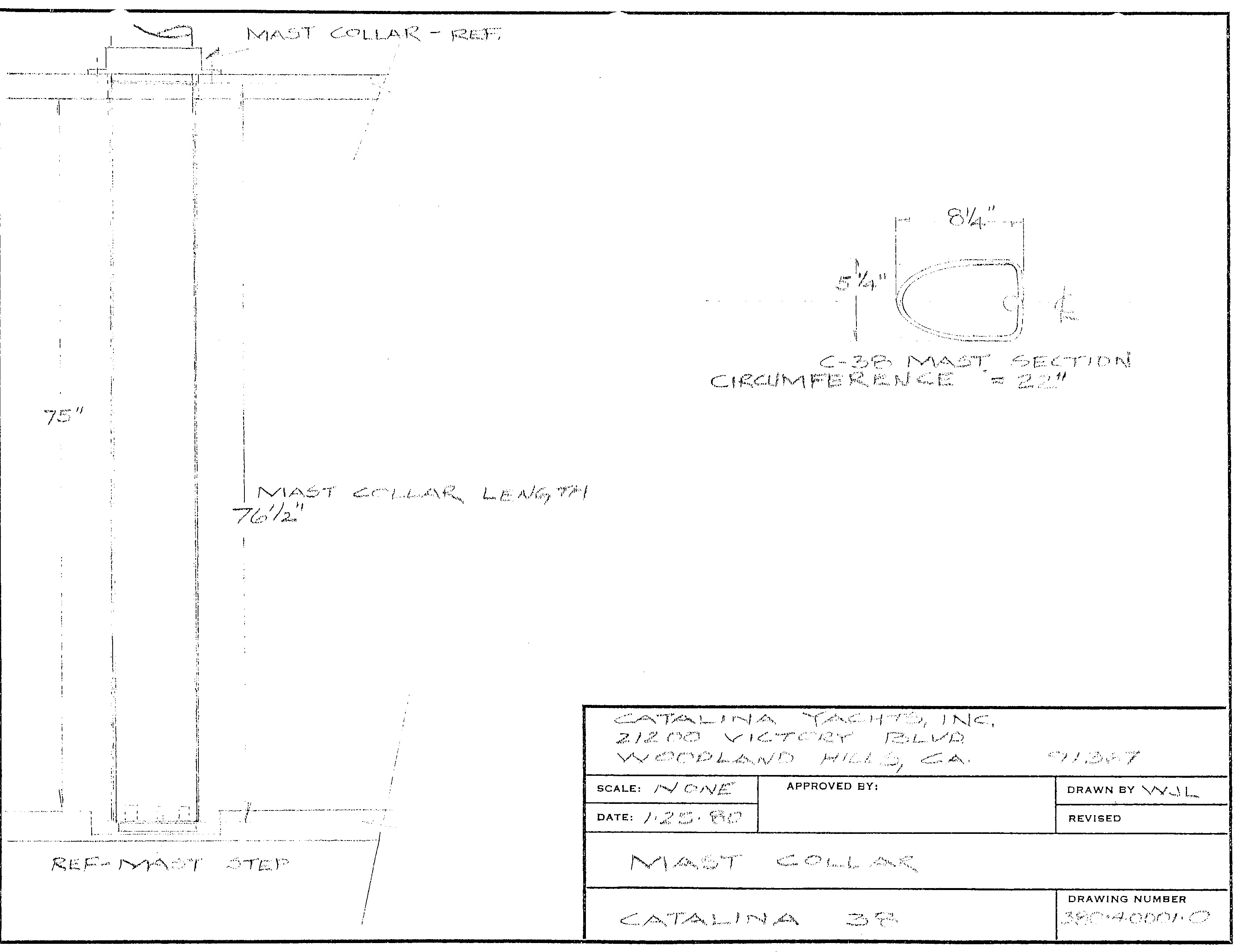

Mast Collar

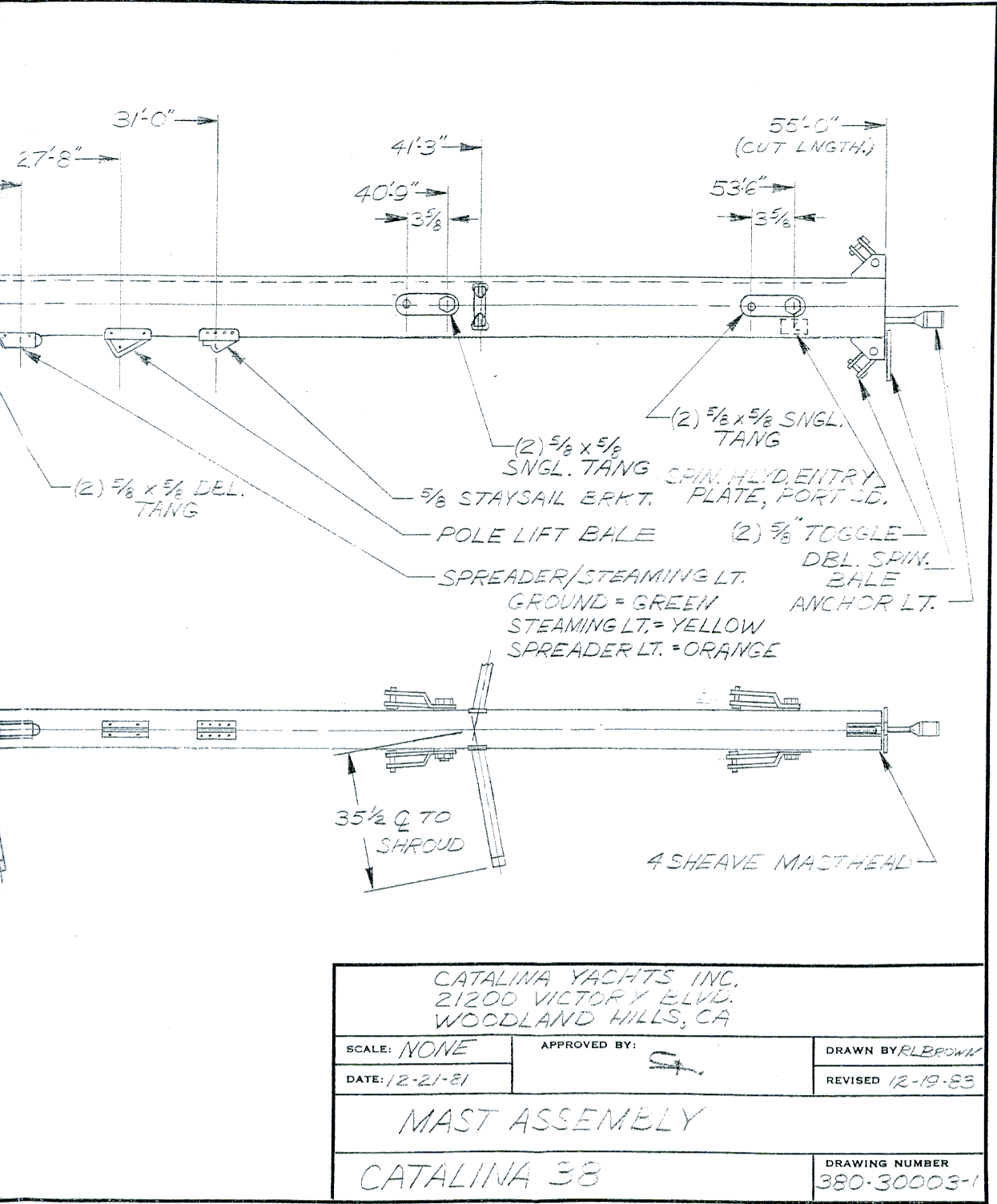

Mast Top

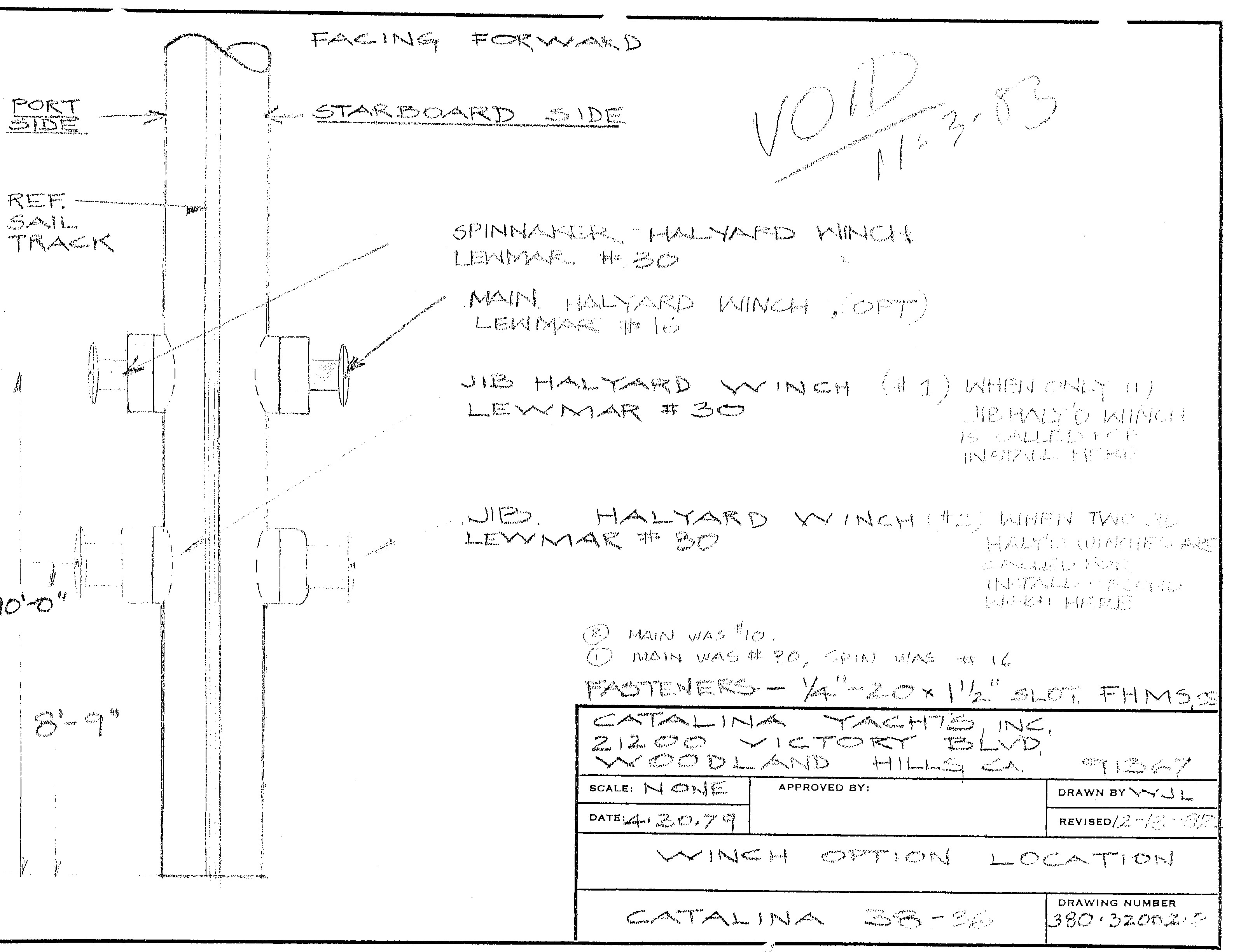

Mast Winch

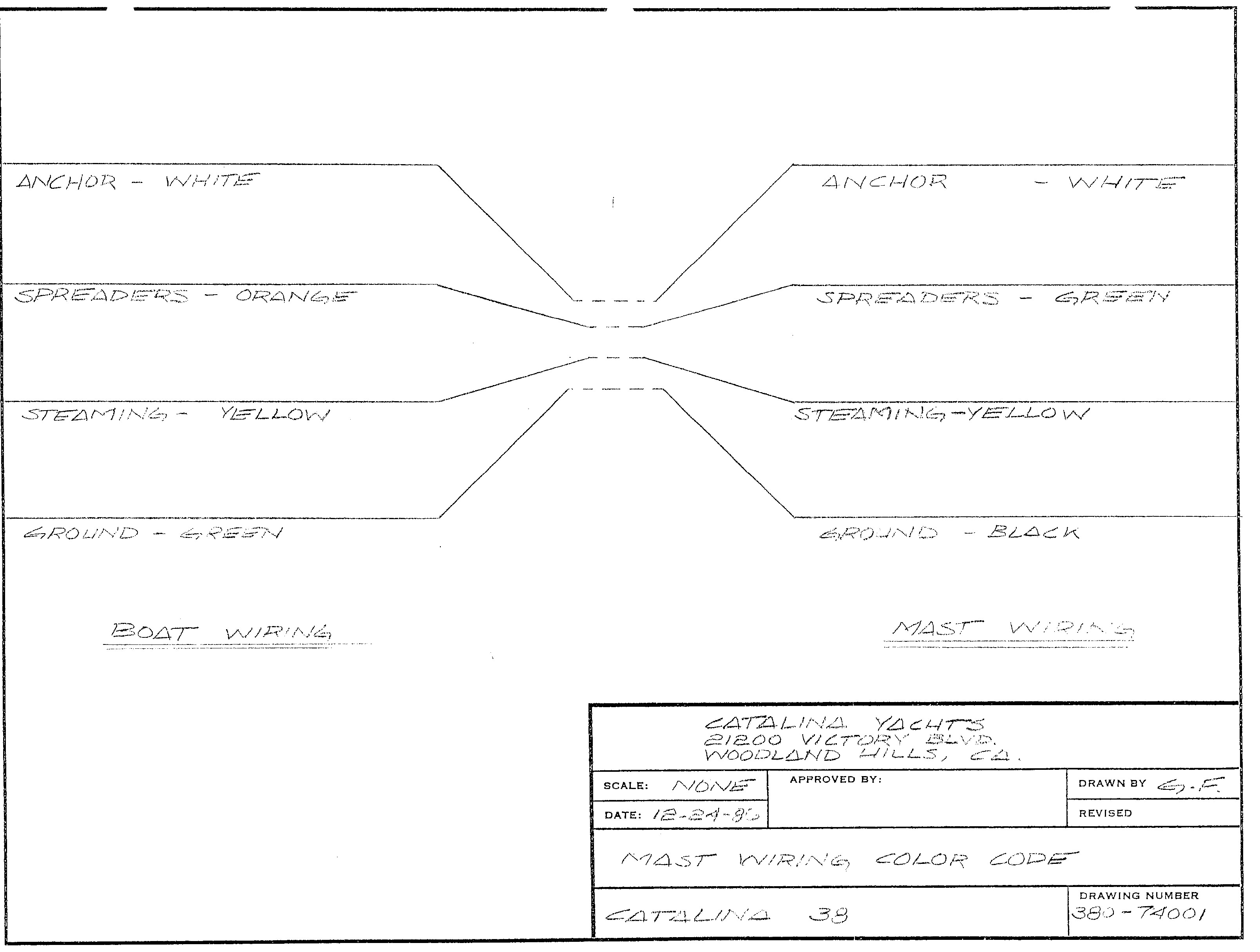

Mast Wire Code

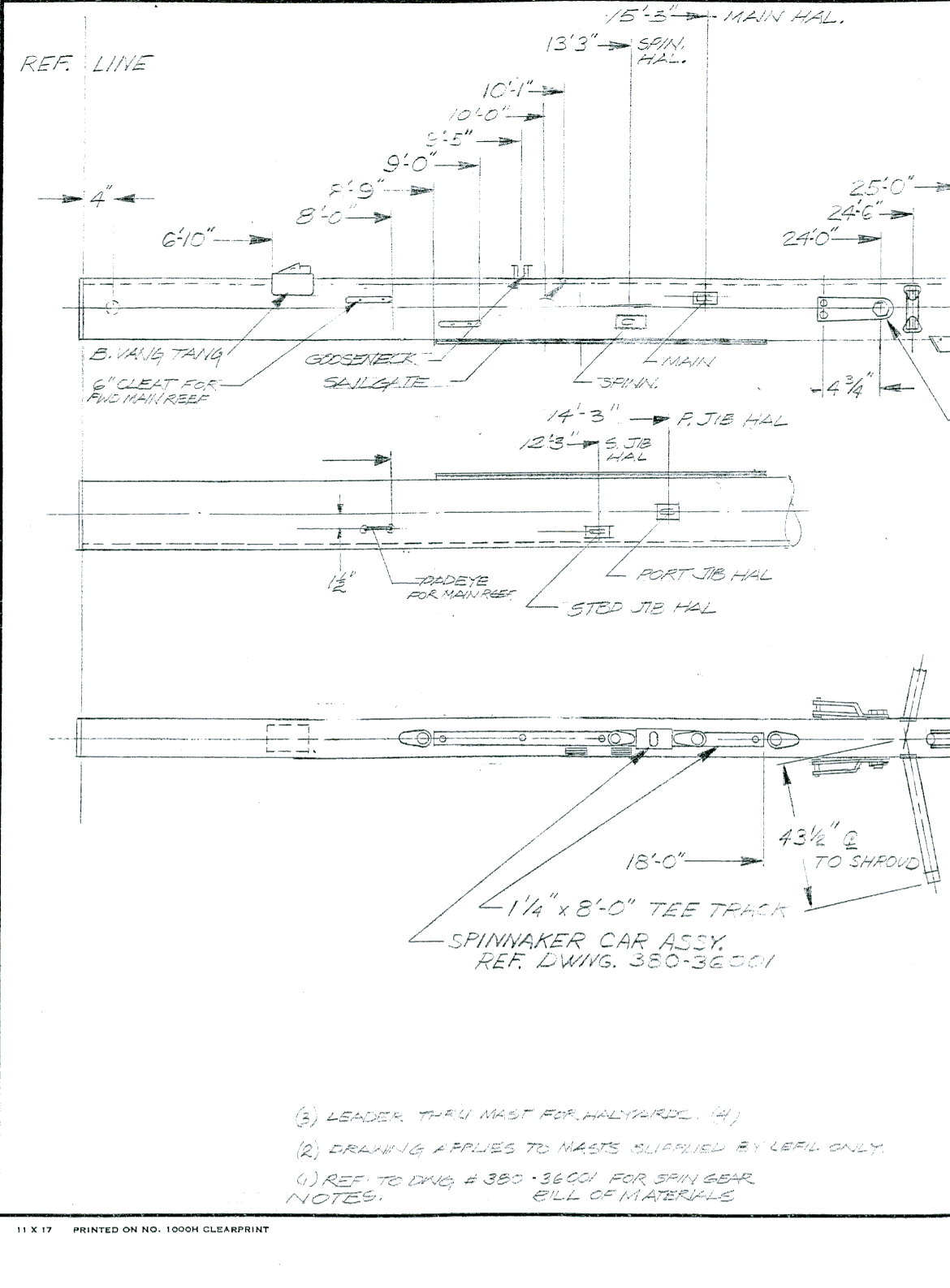

Spinnaker Car 1

Spinnaker Car 2

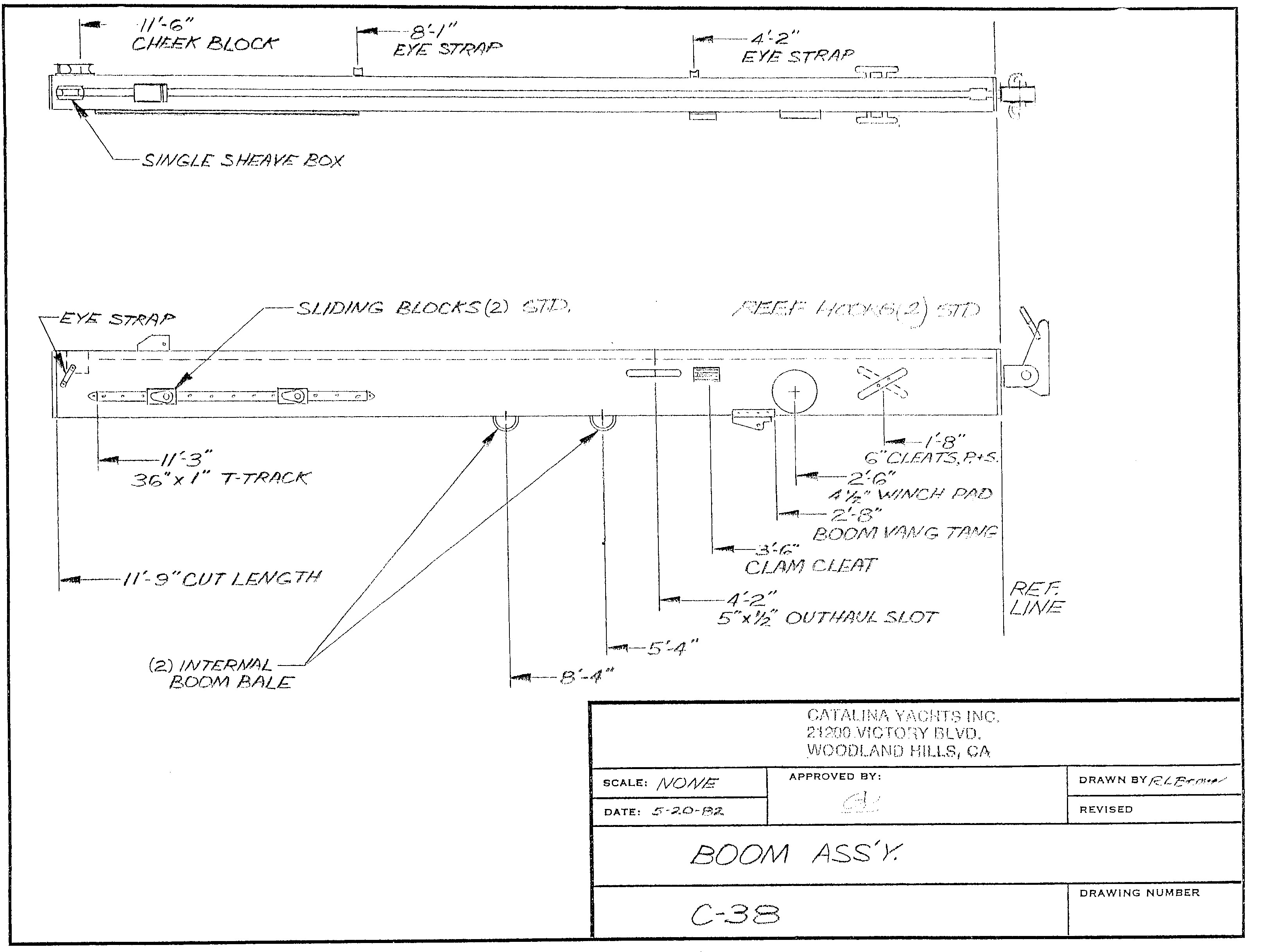

Boom Assembly

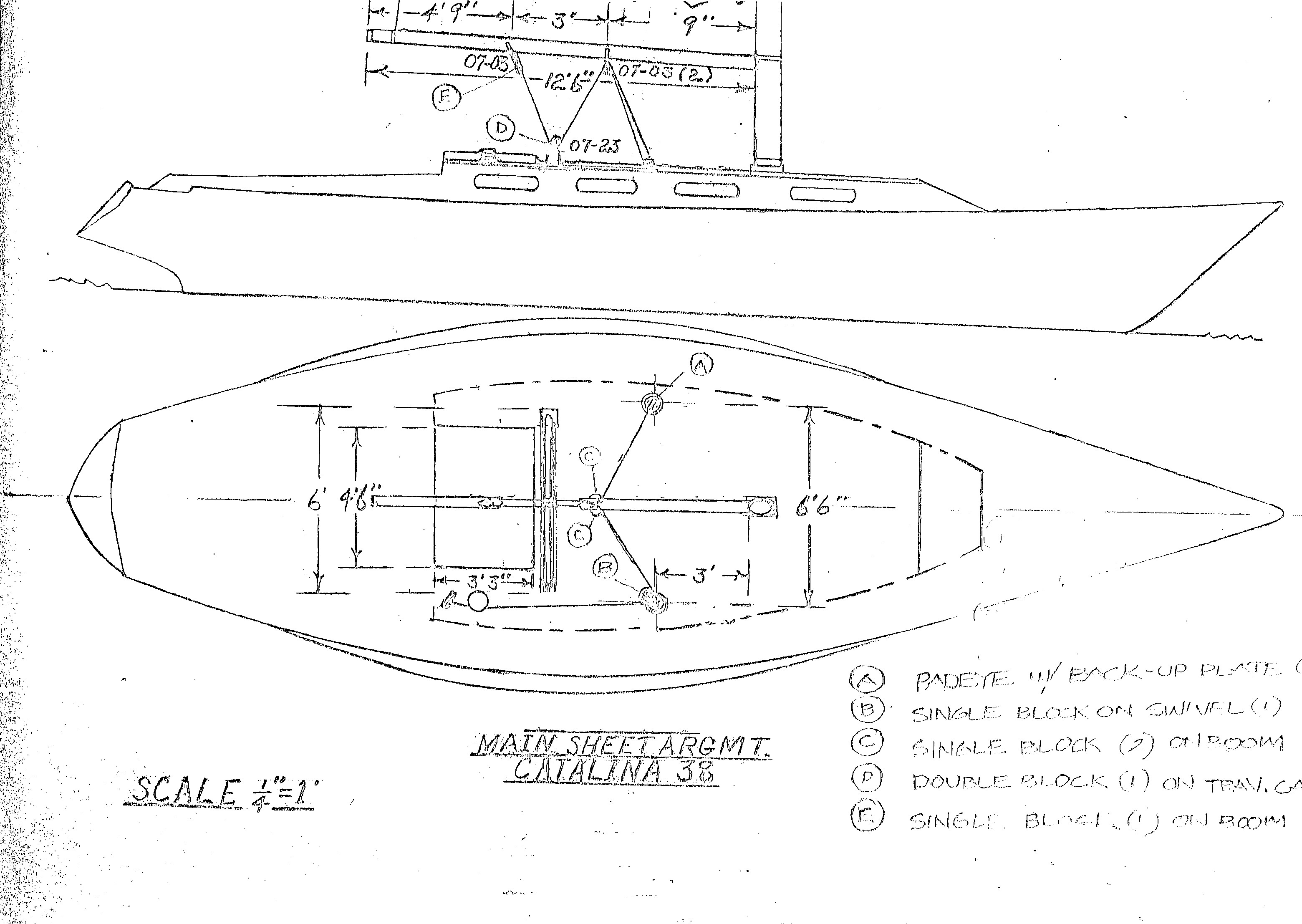

Boom Rigging

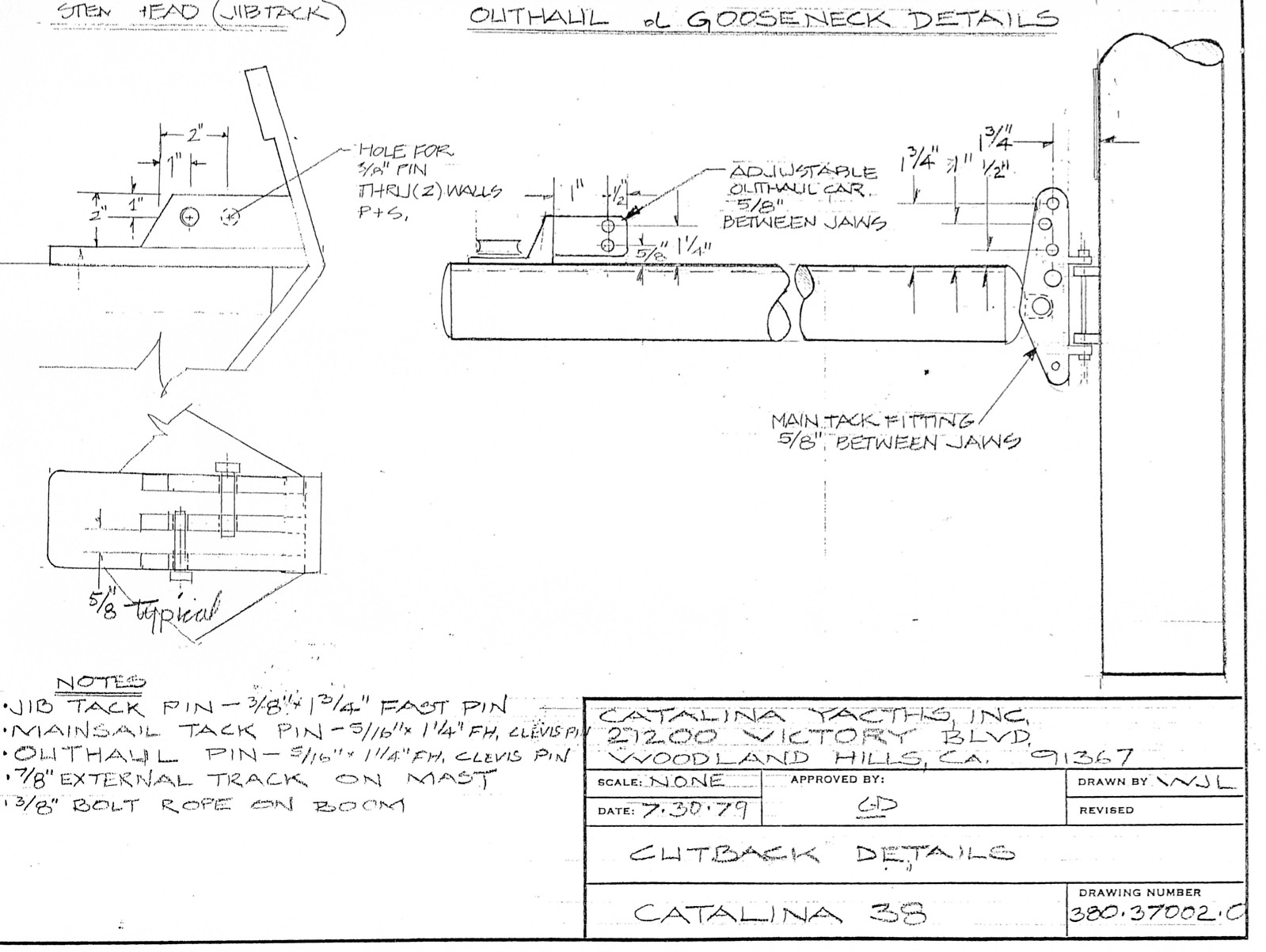

Outhaul Gooseneck

Outhaul

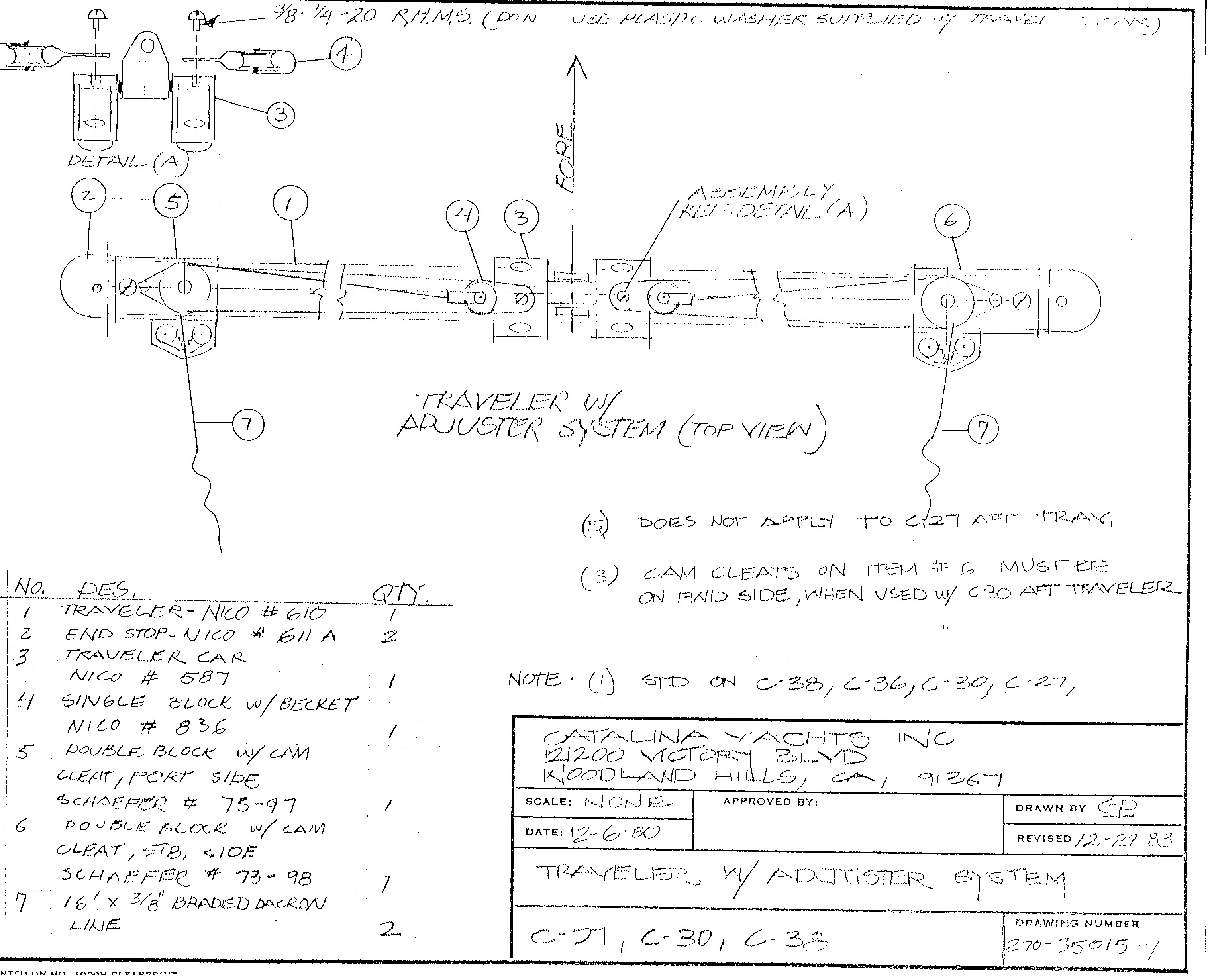

Traveller

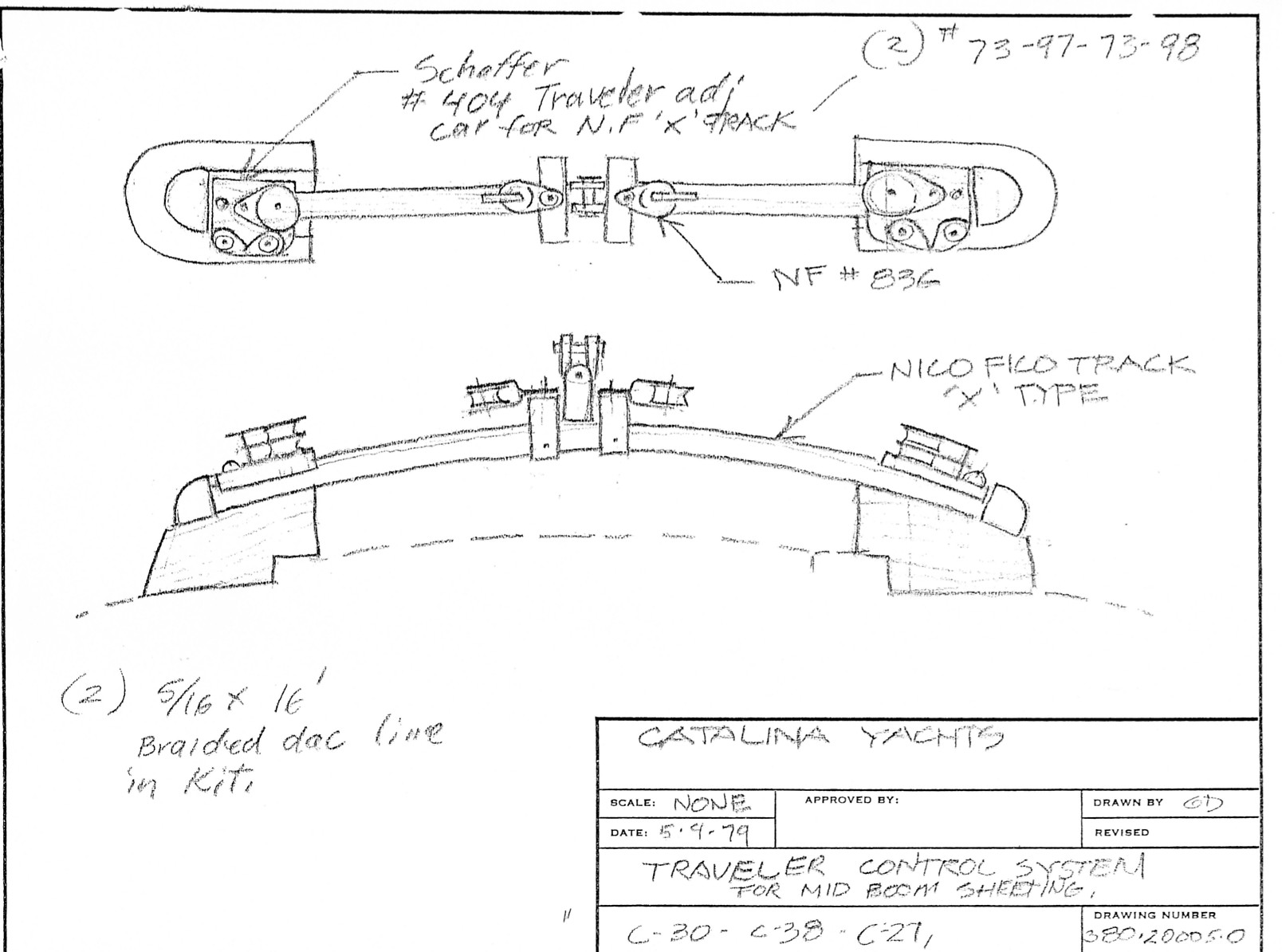

Traveller Control System

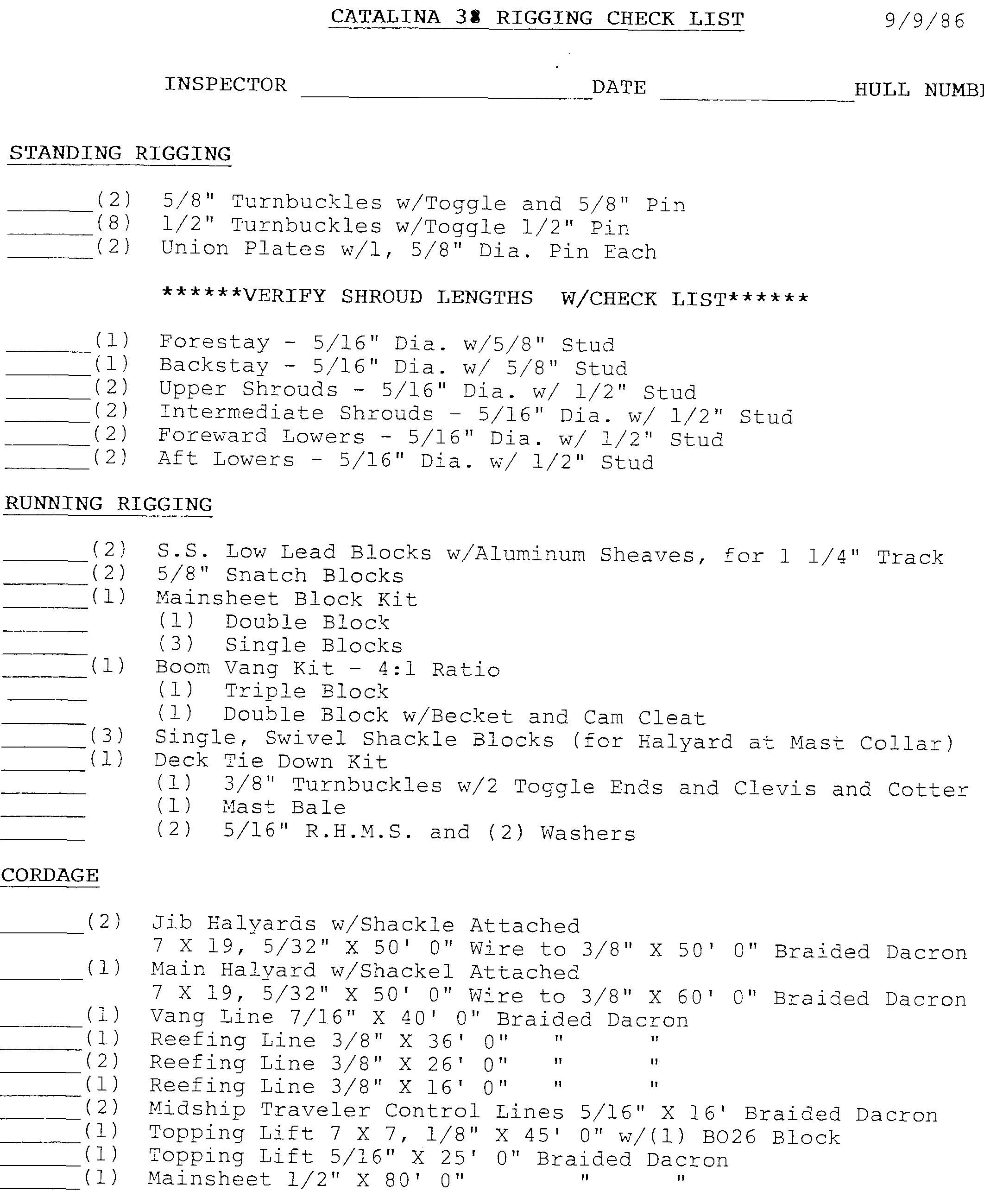

Rigging Check List 1

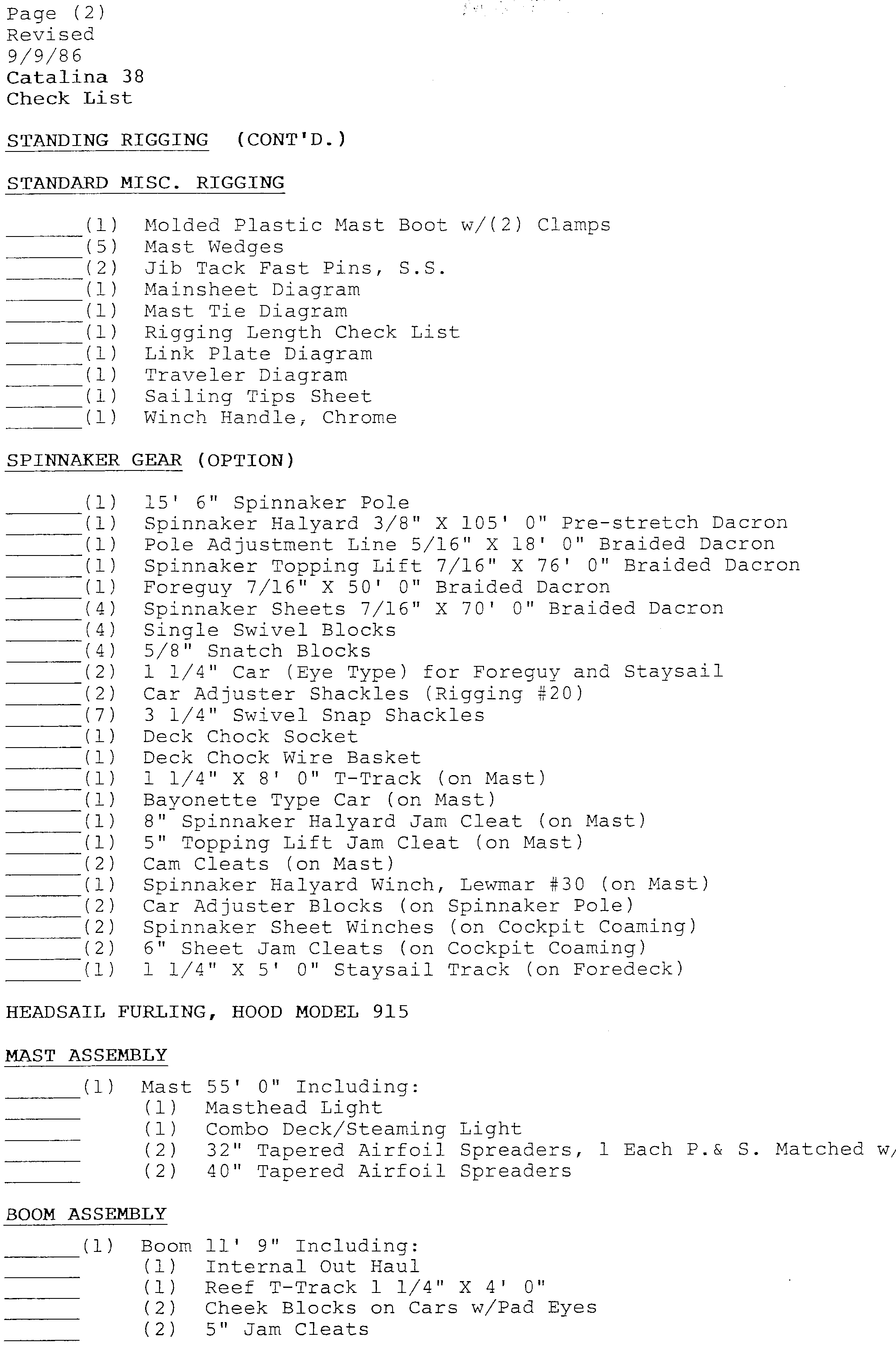

Rigging Check List 2

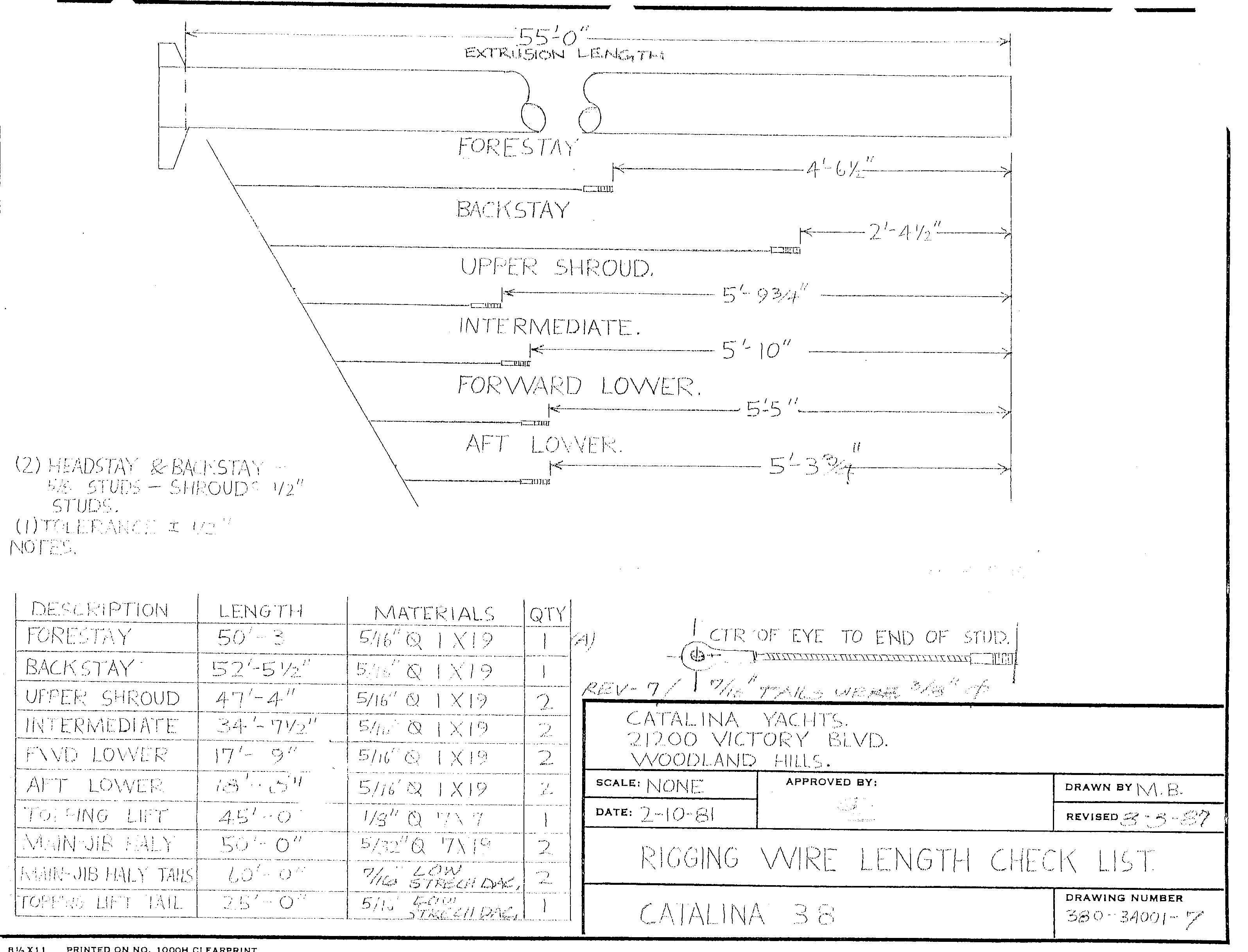

Rigging Wire Lengths

One Response to “Mast-Boom Rigging”

  1. sschrenkeisen says:
    March 14, 2011 at 8:15 pm

    I am getting quotes for standing rigging wire replacements, and don’t see spreader wire lenghts? Am I missing something?

    Thanks,
    Stephan
    therock#32
